Steam Inlet & Strainer
Steam inlet, strainer upstream to remove impurities.

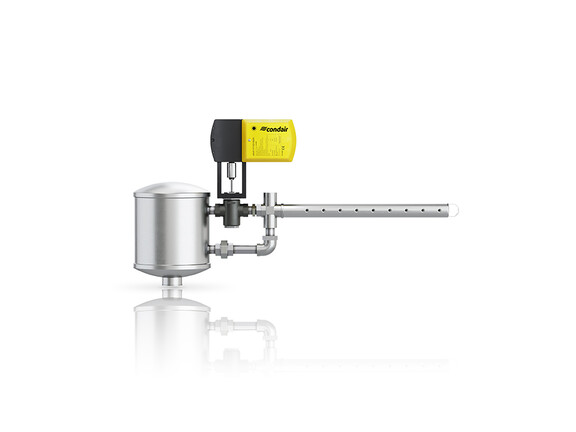

Condair LS Live Steam Humidifier
steam humidifierThe Condair LS live steam humidifiers deliver precise, reliable humidity directly from the facility’s steam boiler. Featuring premium 304 stainless steel tube-in-tube distributors in a variety of lengths and configurations, the Condair LS ensures efficient steam dispersion with minimal maintenance for hospitals, universities, museums and more.
Reliable boiler supplied humidification
The Condair LS Live Steam Humidifier connects directly to your facility’s existing steam boiler, delivering consistent and dependable humidity control. It is ideal for large commercial buildings, institutions, and industrial applications where reliable boiler steam use is essential.
Durable 304 Stainless Steel Construction
Durable tube-in-tube distributors made from high-quality 304 stainless steel ensure long service life and corrosion resistance.
Custom Sizes for Any Duct Application
The Condair LS steam distributors are available in lengths from 12” to 144” with both single- and multi-tube configurations. This flexibility guarantees optimal steam dispersion across all duct sizes and air handling unit designs.
Prevents Steam Spitting
The LS’s steam‑jacketed dispersion tubes maintain high efficiency and prevent condensate “spitting.” This ensures only clean, dry steam is introduced into the airstream, protecting ducts while improving comfort and air quality.
Flexible Humidifier Control Options
With support for both pneumatic and electric actuators, the Condair LS integrates seamlessly with a wide range of building automation systems. Its precise valve control delivers accurate humidity levels and energy-efficient operation.

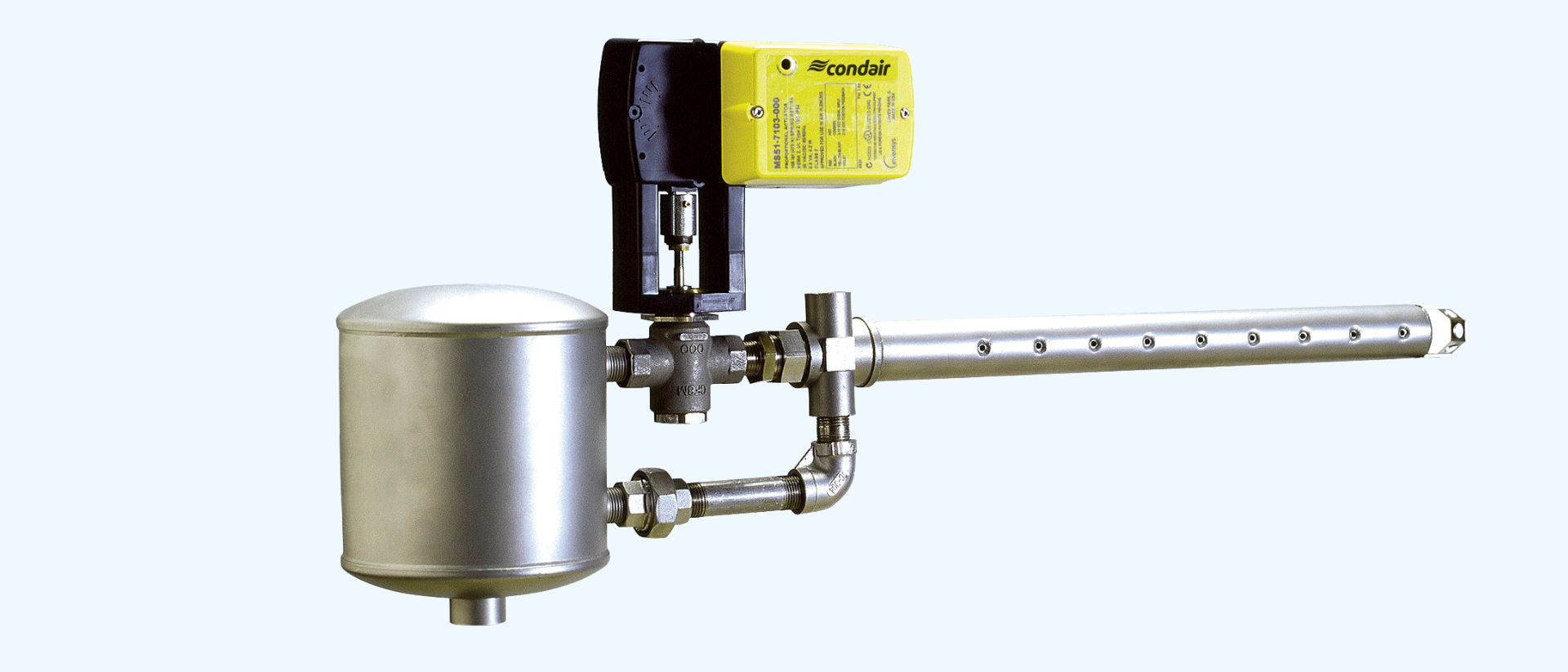

Jacketed Dispersion Tube
Steam jacketed dispersion tube.
Support Bracket
Tube support bracket, ensures proper unit installation.
Interconnecting Pipes
Interconnecting pipes between dispersion tube and separator.
Steam Separator
Steam separator ensures only condensate-free steam is discharged into the air stream.
Condensate Outlet
Condensate outlet to steam trap for recirculation to boiler for energy efficient operation.
Steam Control Valve
Steam control valve meters steam entering dispersion tube
Actuator Options
Electric on/off and electric modulating actuators standard. Pneumatic valve actuator optional.
PLACEHOLDER SPARE PARTS
PLACEHOLDER SPARE PARTS
Frequently asked questions
Does the Condair LS require special water quality?
How does the Condair LS prevent spitting or condensation inside ducts?
What control options are available for the Condair LS Live Steam Humidifier?
What is the Condair LS live steam humidifier?
