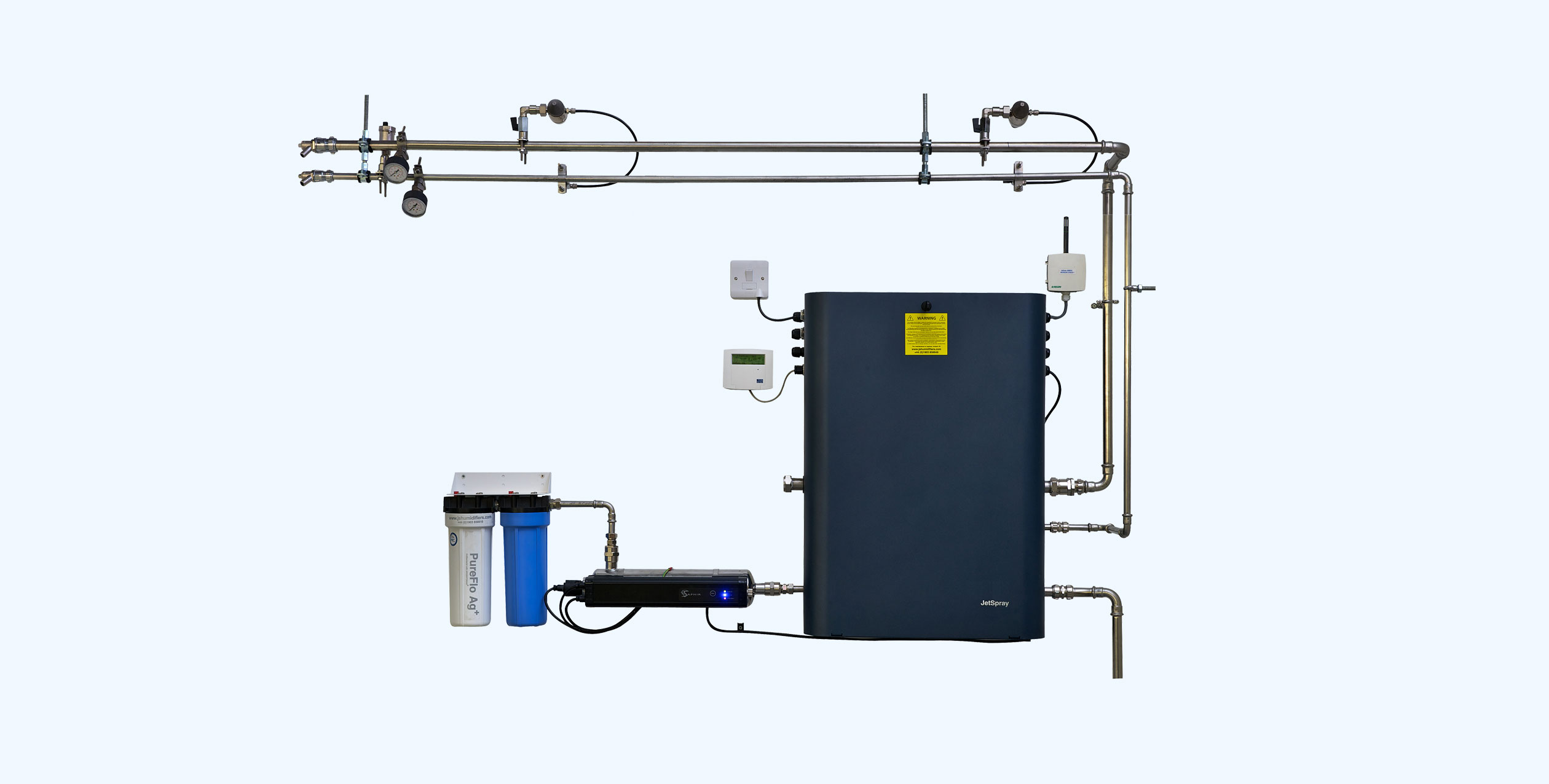

JetSpray panel
An IP54-rated cabinet provides convenient access to nozzle controls, with all electronics stored separately above the water and air pipes.
JetSpray
In-room compressed air humidifierThe combination of compressed air and water allows the JetSpray to provide rapid moisture evaporation without any risk of wetting. Its fully modulating output offers very accurate humidity control at ±2%RH.
The JetSpray’s fan-free, robust design and self-cleaning nozzles make it ideal for dusty industrial settings. It works effectively with mains or demineralized water and in cold temperature areas.
The JetSpray’s fan-free, robust design and self-cleaning nozzles make it ideal for dusty industrial settings. It works effectively with mains or demineralized water and in cold temperature areas.

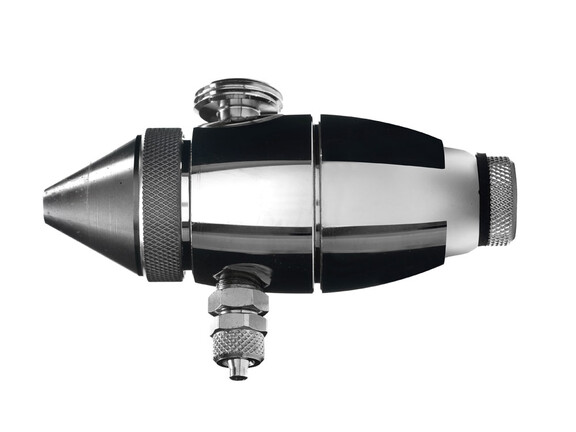

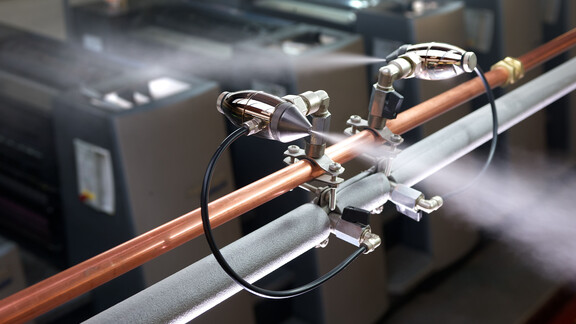

JetSpray in-room compressed air humidifier
Hygienic by design
Routine flush and drain cycles ensure water cannot remain in the system to stagnate. An air run-on feature leaves the pipework dry when no humidity is required to protect against microbial growth in residual water.
An antibacterial filter treats the incoming water for added protection. This bacteriostatic system provides a lasting cleansing effect throughout the humidifier. An optional ultra-violet water sterilizer can also be incorporated on the incoming water supply to inactivate pathogens and viruses.
An antibacterial filter treats the incoming water for added protection. This bacteriostatic system provides a lasting cleansing effect throughout the humidifier. An optional ultra-violet water sterilizer can also be incorporated on the incoming water supply to inactivate pathogens and viruses.
Low water consumption
As the JetSpray can operate on potable municipal water, it does not need a demineralized water supply to prevent nozzle blockages. This eliminates the wastewater sent to drain from RO water treatment systems and can reduce the overall water consumption of the humidification system by up to 50%.

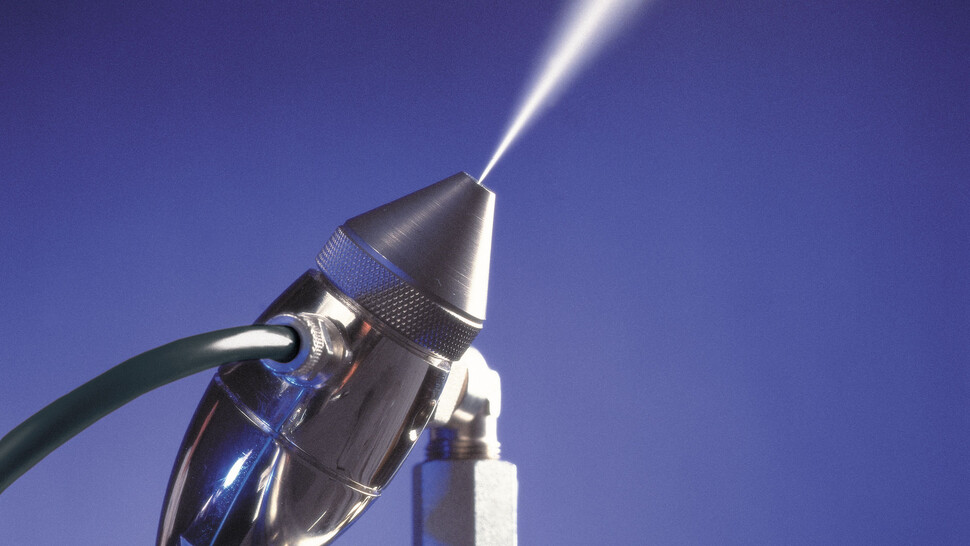

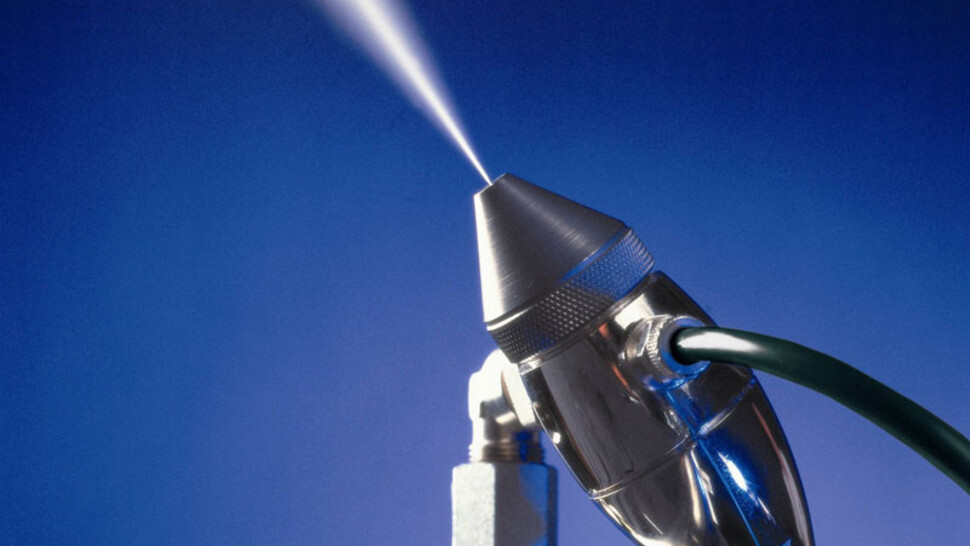

Self-cleaning nozzles
The JetSpray nozzle uses a self-cleaning pin that prevents blockages by moving through the orifice after each spray cycle. As it is pushed back by the water pressure during operation, it requires no lubrication, unlike piston-driven systems. The nozzles are so robust in operation they carry a 10-year warranty.
Self-cleaning nozzles
Precision engineered nozzles with a 10-year warranty offer long life, minimal maintenance and are intrinsically safe with no local electrical supply required.
Humidity sensor
A single in-room humidistat or up to three averaging sensors can be used to monitor room conditions and provide accurate humidity control.
Remote user interface
The backlit digital display with keypad offers control, operational details, commissioning, alerts and fault diagnostics. Can be located up to 100m away and controllable via BMS.
Water supply
The JetSpray can operate on any potable water quality without the need for a demineralised supply, minimising water consumption.
Antibacterial water filter
Silver is a powerful bacteriostatic agent with residual effects throughout the pipework, promoting hygienic operation. UV water treatment is also available as an option.
Ultraviolet water treatment
Optional ultraviolet water steriliser can be incorporated on to the incoming water supply line to inactivate pathogens and viruses.
Compressed air supply
Ensures rapid moisture evaporation, highly directional sprays with no risk of drips. The JetSpray uses at least 30% less compressed air than any other similar system.
Drain
Automated drain and purge cycles ensure water cannot stagnate in the system. Air run-on leaves water pipework dry when no humidity is required.
PLACEHOLDER SPARE PARTS
PLACEHOLDER SPARE PARTS
Frequently asked questions
Why use a compressed air humidifier?
What water quality can the JetSpray be operated on?
Are any special tools needed to install a JetSpray?
What type of compressed air supply is needed?
Can the JetSpray be used in ATEX environments?
Discover Condair in action
Aston Martin
Condair JetSpray humidification systems are maintaining the humidity in the finishing areas at Aston Martin's Newport Pagnell and Bloxham plants. By maintaining a level of humidity at 55%RH, any dust that is in the atmosphere around the cars is suppressed, giving a much finer finish during the painting and sanding processes.

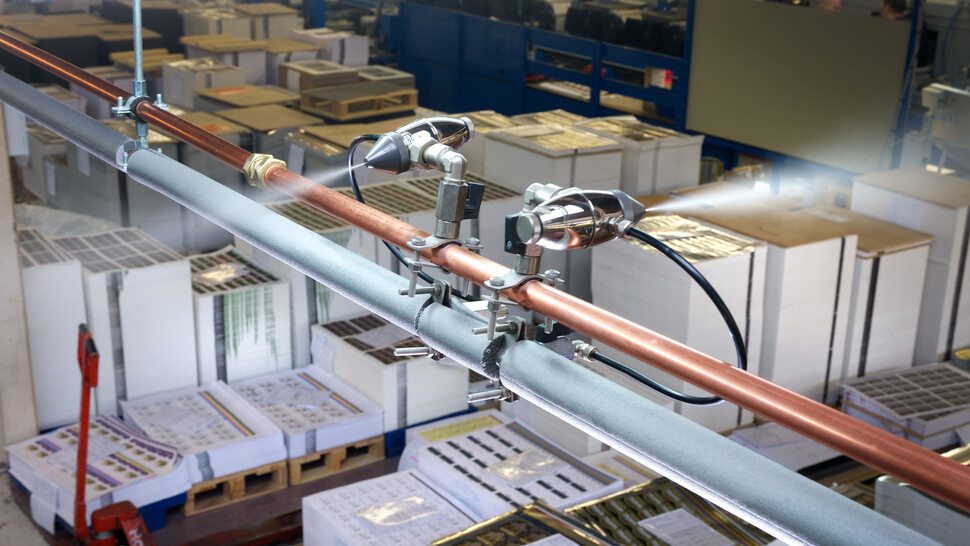

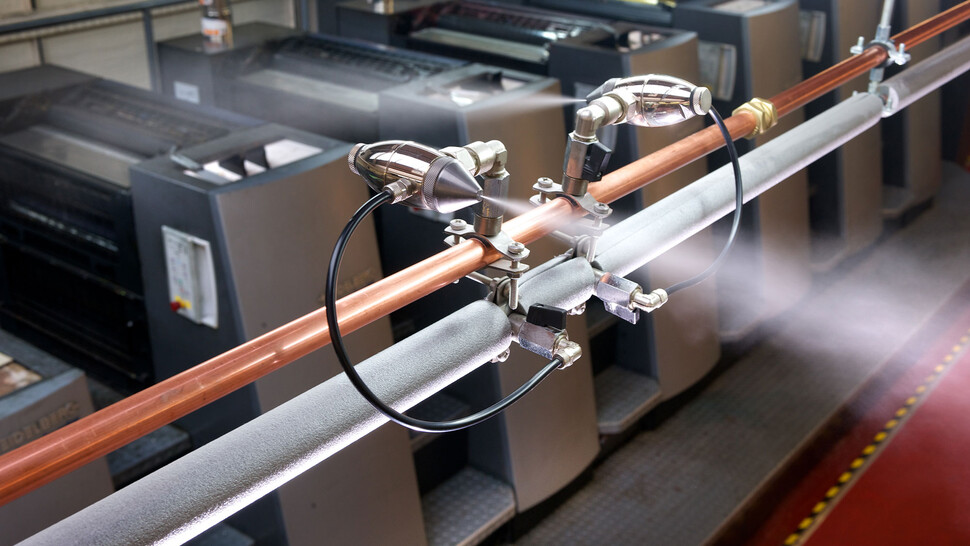

John Watson, Scotland

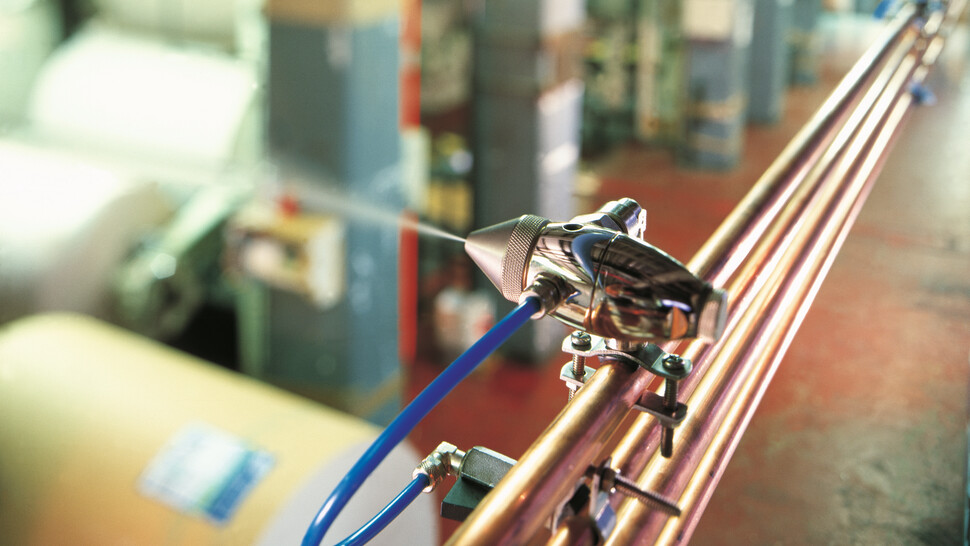

When John Watson & Co, the oldest printing company in Scotland, was seeking to enhance its process control by improving the humidity of its print room, it contacted Condair, who installed the JetSpray air and water atomising humidifier, developed especially for the printing industry.

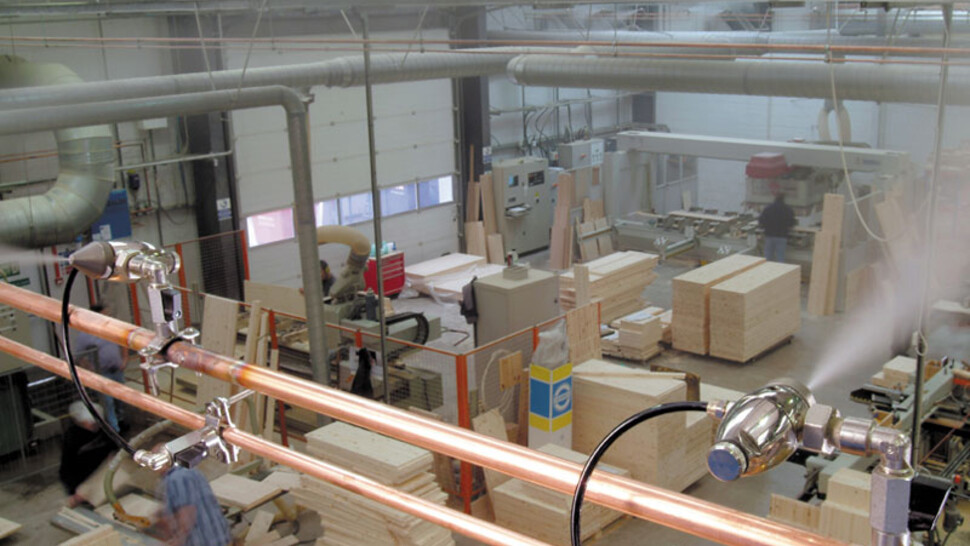

Pinetum Furniture
Condair has supplied and installed a JetSpray humidification system to Pinetum, a pine furniture manufacturer based in Wiltshire. 116 nozzles, which combine compressed air and water to produce a fine atomising spray, humidifying the company's timber store, machine shop and assembly areas, maintaining the humidity at 60% relative humidity. 525 litres of water are pumped into the atmosphere every hour around Pinetum's production facility, ensuring that the timber being worked and stored there remains in total equilibrium with its environment.

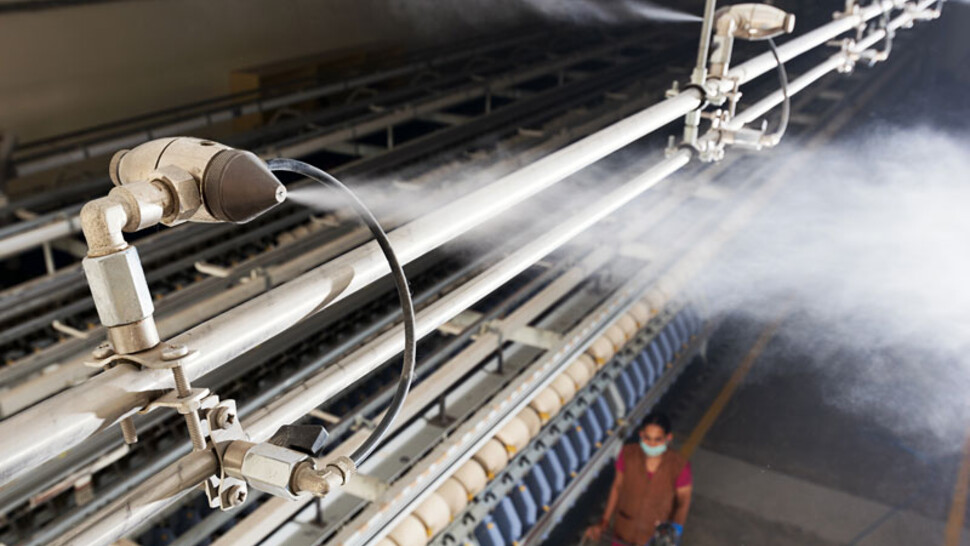

VMT Spinning Company, India
VMT Spinning Company has recently installed a JetSpray humidification system from Condair in its post winding section, at its state-of-the-art cotton production facility in Baddi, India, to maintain yarn quality and strength. The JetSpray humidifier was supplied and installed by Condair™s Indian representative, Regent Machine and Servicing, and is capable of delivering around 250 litres of moisture per hour to maintain the ideal air humidity.

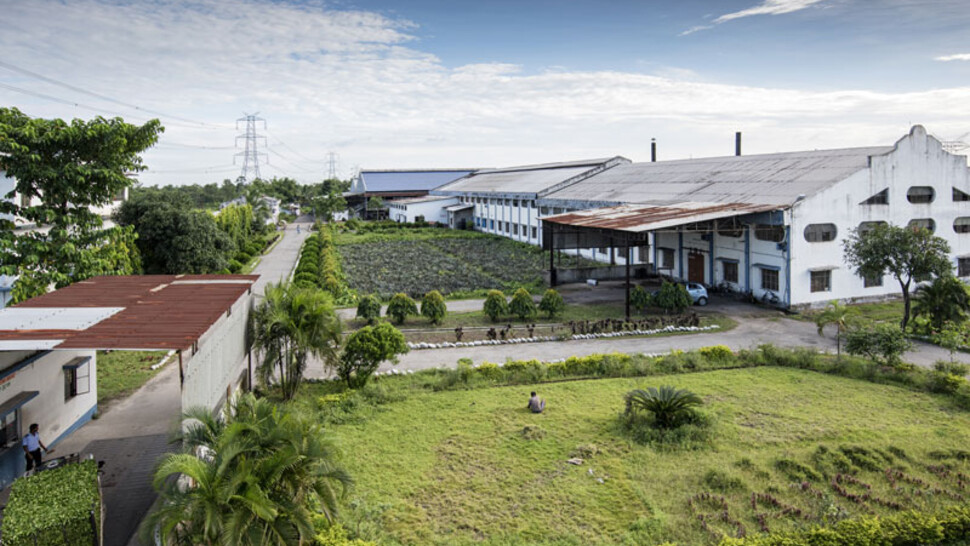

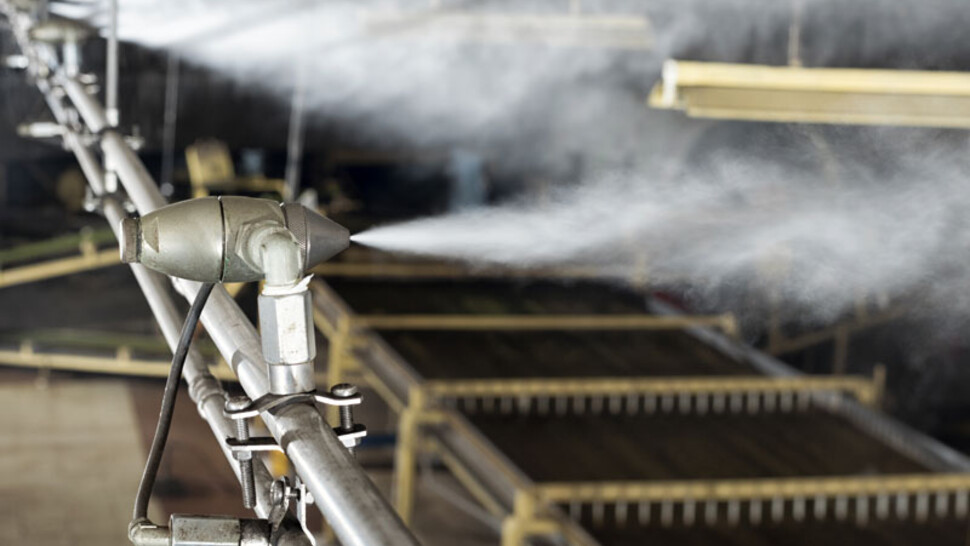

Bajrang Tea, India
JetSpray humidifiers from Condair are maintaining an optimum 95% relative humidity (%RH) above the continuous fermentation machines at Bajrang Tea factory in West Bengal, maximising the quality of the tea produced there. The improved humidity control has resulted in enhanced fermentation of the tea with better infusion and liquor, and ultimately a higher market value.
British American Tobacco, Uzbekistan
British American Tobacco has been operating on the Uzbekistan market since 1994 and employs more than 1,000 people. Total investments of British American Tobacco into the Uzbek economy exceeded US$ 400 million.
Sabuj Agro Tea Factory, Bangladesh
The Sabuj Agro tea factory in Bangladesh has installed a Condair JetSpray humidification system to maintain the perfect humidity in its production facility and ensure the highest quality black tea.
By maintaining 95%RH in the factory, moisture loss from the cut leaves is significantly reduced. This improves the fermentation process, resulting in a more flavoursome tea with greater market value.
By maintaining 95%RH in the factory, moisture loss from the cut leaves is significantly reduced. This improves the fermentation process, resulting in a more flavoursome tea with greater market value.
Ganges Jute Mill
15 JetSpray humidification systems are maintaining an optimum 70%RH in the spinning and weaving areas of Ganges Jute Mill in Kolkota, West Bengal. With a total output of up to 9,000 litres of humidity per hour, the humidification system helps maintain jute product weight and quality as well as delivering evaporative cooling for the hard working mill staff.
Haramain High Speed Railway, Saudi Arabia
The Haramain high-speed Railway is a major infrastructure project for the Kingdom of Saudi Arabia, connecting the cities of Makkah, Madinah, Jeddah and the developing King Abdullah Economic City (KAEC).
JetSpray humidifiers provides evaporative cooling to the platforms and cool commuters with low energy, high capacity direct air cooling at Makkah and Madinah stations.
JetSpray systems provide cooling to the platforms via series of high level nozzles integrated within the lighting columns.
JetSpray humidifiers provides evaporative cooling to the platforms and cool commuters with low energy, high capacity direct air cooling at Makkah and Madinah stations.
JetSpray systems provide cooling to the platforms via series of high level nozzles integrated within the lighting columns.
Brewdog
BrewDog is an award-winning Scottish craft beer company founded in 2007 by Martin Dickie and James Watt. Arguably the most famous craft beer brewers in the world, they operate 50 bars across the UK and 24 international bars, and employ more than 1,000 people around the world. The company's beers include the original Punk IPA as well as other favourites such as Dead Pony Club, Kingpin and 5am Saint. A Condair JetSpray humidifier is maintaining the ideal humidity in a hops storage area to ensure the hops remain at the perfect moisture content prior to brewing.
ICS Cool Energy for a Fish Factory
Condair's JetSpray humidifier is helping refrigeration equipment specialists ICS Cool Energy increase profits at a leading worldwide brand of canned fish by $1 million per year. By maintaining a high humidity around the fish after steaming, evaporative weight loss from the cooked fish has been reduced from approximately 5% to 0.67%. The humidification system is preventing up to 8.5 tonnes of product from simply evaporating each day between cooking and canning.

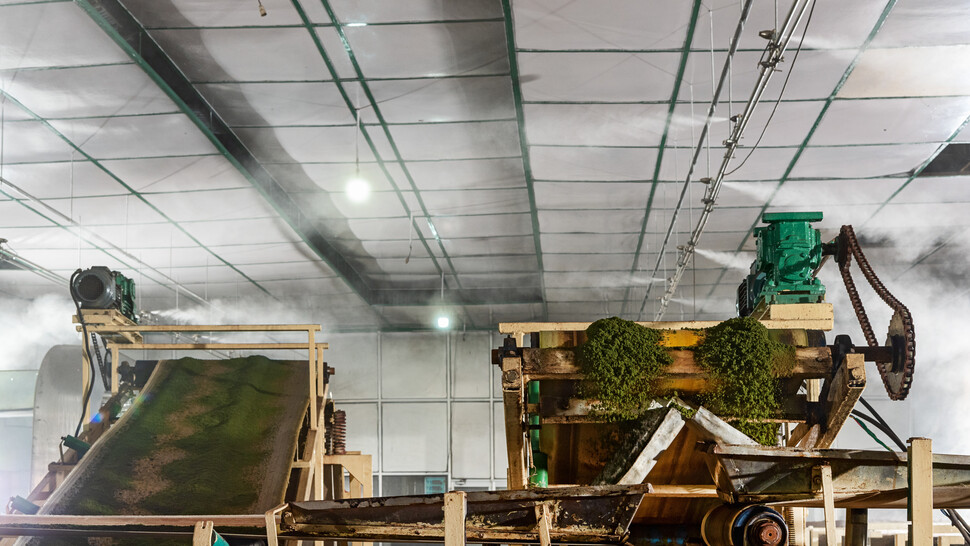

Parmeshwari Tea, India
Humidity control specialist, Condair, and its Indian distributor, Regent Machine & Servicing, has supplied and installed a JetSpray humidification system at Parmeshwari Tea factory in Assam. The compressed air and water spray humidifier is maintaining the ideal humidity in the CTC and CFM areas to prevent moisture loss from the tea during processing and fermentation. This results in a consistently high quality tea, which is blacker and with stronger liquor, no matter what the ambient weather conditions are like.
Humidificacion de Municiones

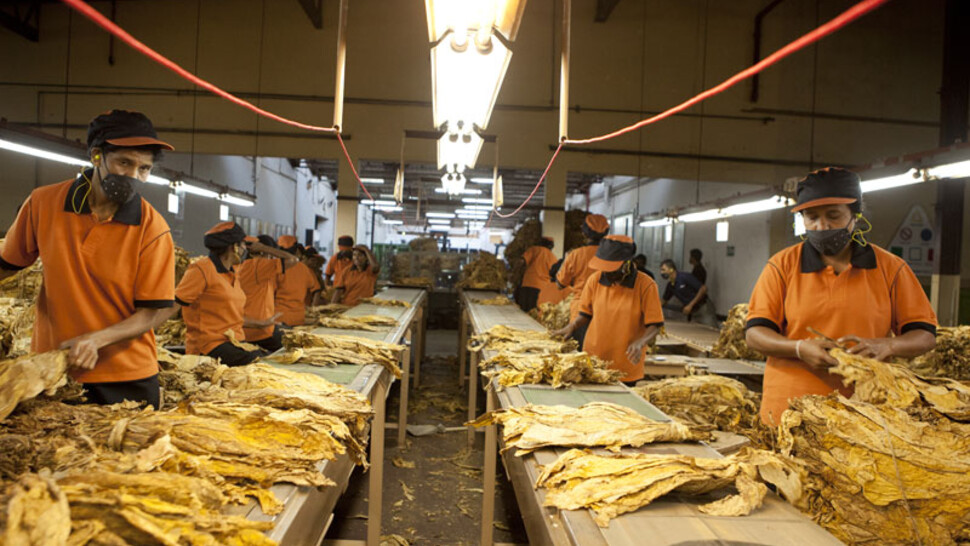

British American Tobacco, Cambodia
BAT Cambodia is one of the leading tobacco companies in the region, manufacturing and distributing State Express 555, Kent, Alain Delon, Liberation and National brands.A JetSpray humidification system from Condair is helping BAT Cambodia maintain the ideal production environment.
British American Tobacco, Cameroon
British American Tobacco is one of the world's leading tobacco companies with over 200 brands sold in over 200 markets worldwide.A JetSpray humidification system from Condair is helping BAT Cameroon maintain an ideal air humidity for optimum tobacco productivity.Image courtesy of BAT.
Quotes from our Customers
Alan Darrock
We need a reliable, effective humidification system to ensure that we can achieve the utmost finish to our cars. Since the new equipment was installed, we have seen improvement in the quality of the paint finish, and our workforce now keep the doors closed. We have been more than pleased with the service and skill that Condair offers and will be using them in other production areas.
Steve Freeman
Jet Press Solutions ManagerHumidity control is important for paper handling consistency when running lighter weight stock on the Jet Press 720S in both the feeder and jetting area. We aim to maintain an RH of between 40% and 60%. Below this could potentially cause an increase in paper handling issues on light weight paper.
Once the humidifier was up and running correctly, it has performed well. It now easily and quickly gets the room up to the required RH and maintains this after start-up.
Once the humidifier was up and running correctly, it has performed well. It now easily and quickly gets the room up to the required RH and maintains this after start-up.
Robert Ten Cate

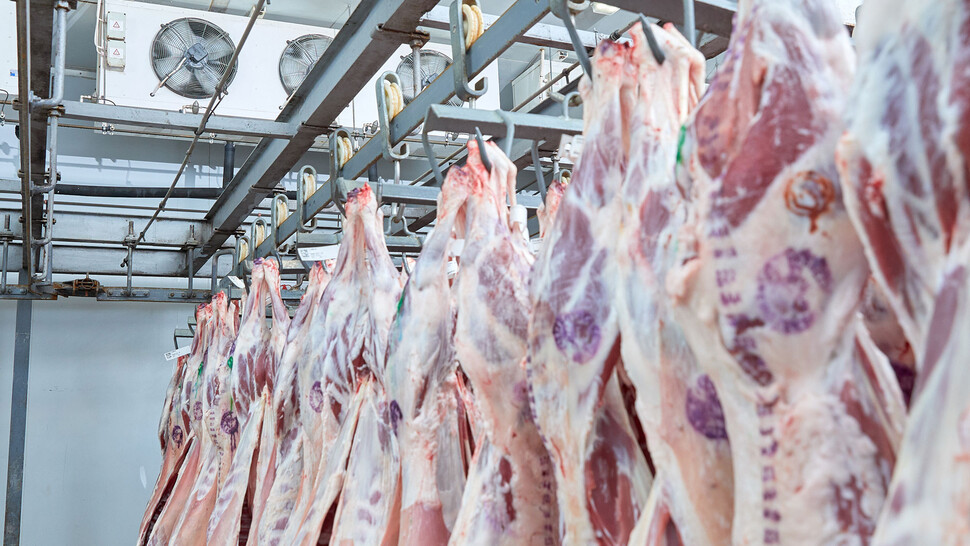

ConsultantBy maintaining a high humidity in the chill store with a JetSpray humidifier during the initial cooling, moisture loss from the carcass is inhibited and can be reduced to less than 1%.
Malcolm Edwards
Group Technical ManagerThe JetSpray has been in operation now for a number of months keeping the humidity well over the required 90%RH and maintaining a very low 0.67% weight loss. The energy and water savings are a bonus, and economies will also be achieved through its easy maintenance programme. All in all, our client could not be happier, and neither could we.
Chris Fyfe
Quality Assurance Manager"Due to the conditions in our print room, the humidifier has been running 99% of the day since installation, keeping RH at a perfect 50%."
Aditya Agarwal
Director“Before we had the JetSpray humidifier, we were unable to achieve the high humidity levels we needed. Our previous humidification system also tended to cause wet patches on the floor nearby. However, since we had the JetSpray humidifier installed, the area is consistently at 95%RH and we’ve managed to virtually eliminate weight loss from the tea during fermentation. This means the moisture stays in the leaf, improving the tea’s fermentation and enhancing the quality of our finished product. We’ve found the JetSpray humidifier very easy to operate and the use of compressed air in the aerosol ensures we never get any drips from the nozzles or wetting on the floor."
Ajay Dhandharia
Managing PartnerAfter installing the JetSpray system we observed that any level of humidity required is constantly achievable without condensation or water getting deposited on the floor or over the machine. With improved humidity conditions, teas became brighter, blacker with better bloom and improved density.
Mukesh Saxena
Chief General Manager of Fabric OperationsThe JetSpray is maintaining the ideal humidity of 60%RH in Auro Weaving’s warping section. This significantly reduces the generation of fly and yarn breakages, helping us to deliver the highest efficiency and quality in the department. Since we installed the JetSpray humidification system, the ambience of the area is very comfortable and clean. We would highly recommend the JetSpray for humidification in warping and yarn storage, where reliable and accurate humidity control is essential.
Gurpreet Singh
Unit Head"The JetSpray has proved highly suitable for our requirements. It consistently maintains the required relative humidity in the area and has very hygienic operation. It is a sealed system with no circulation of water, so there is no scope for growth of micro-organisms. It is also user friendly and practically maintenance-free. The humidifier is also excellent as an in-room top up system to supplement existing air washers fitted in air handling units. During the hot, dry summer season, the humidifier further benefits us by reducing the temperature in the area, creating a more pleasant and productive environment for staff."
Ron Palin
General Manager OperationsThe Condair JetSpray is maintaining the ideal humidity of 70%RH in Akubra’s forming room. This significantly reduces imperfections in the felt, helping to deliver the highest efficiency and quality throughout the hat making process.
